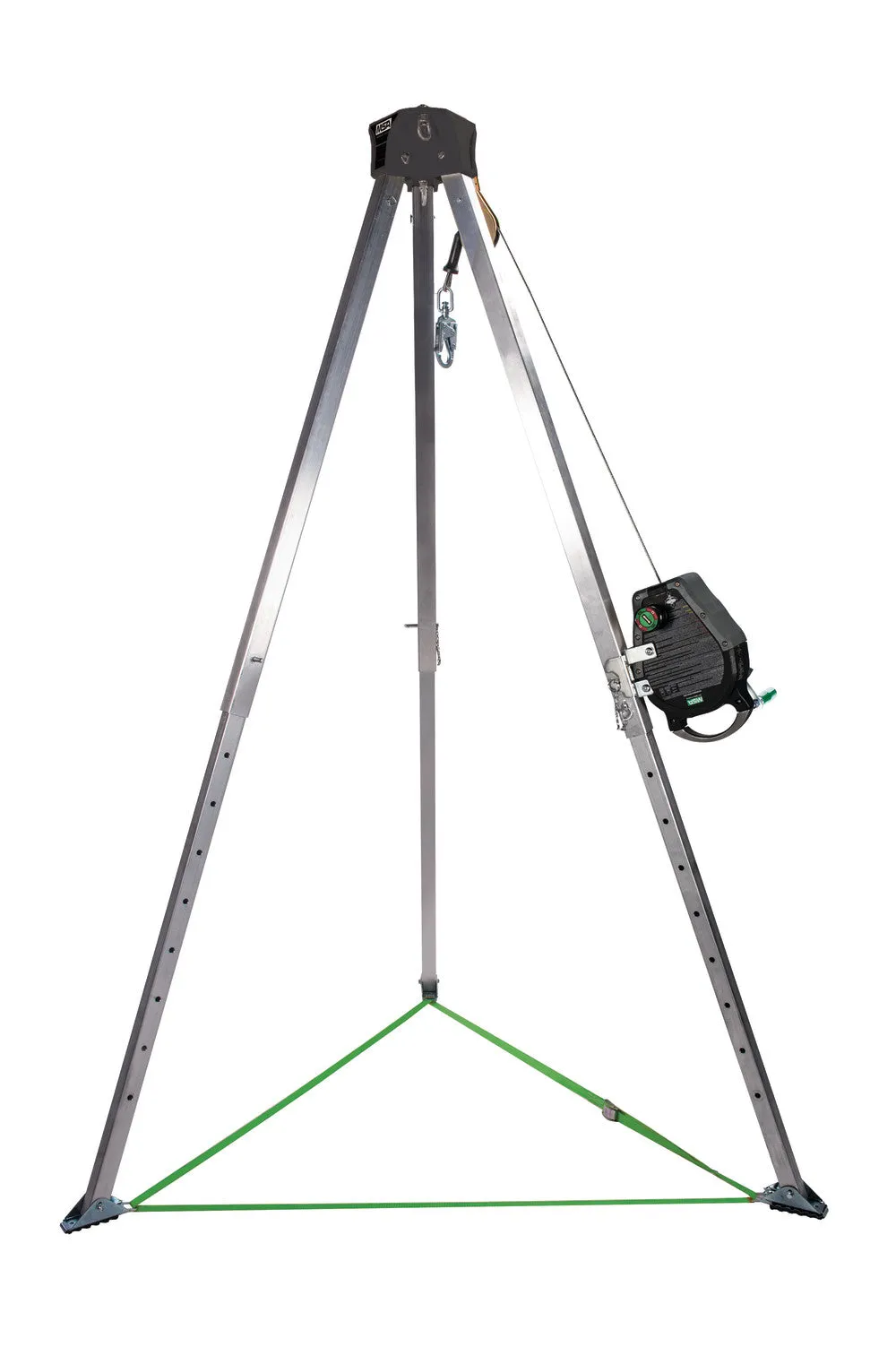

MSA tripods make confined space entry with vertical descent easy. The MSA Tripod features internal leg-locking mechanism, maximum height indicator on tripod legs, cut-resistant leg pin retention chains, recessed product labels, reduced weight, and integral carry strap. The MSA Tripod can be set up and dismantled without use of tools.
Tripod confined space entry kits provide simple ordering with all the necessary components for a complete safety system. Kits are ideal for applications in tanks, manholes and other vertical entry work practices.
- Automatic hinge lock legs with incremental adjustment
- Skid-resistant feet
Features:
- Allow for non-entry rescue of a confined space entrant and great portability
- Lift and lower materials and personnel via the hoist while having the ability to use an SRL
- Complete confined space entry kits are designed for multiple confined space applications.
- Kits provide non-entry rescue of confined space entrant and great portability.
- Kits allow for lifting and lowering of materials and personnel via winch or hoist.
- Kits allow for use of SRL.
- A Confined Space Entry Kit makes it easy to order a confined space system. Kit features:
- Single part number for simplified ordering.
- MSA Rescuer for non-entry rescue of confined space entrant.
- MSA Winch for lifting, lowering and positioning of personnel and materials.
- Carry bags for easy portability.
- Pulleys and carabiners
Applications:
- Confined Space
- Working at Heights
Specifications:
- Model Name: MSA Confined Space Entry Kits
- Model #: 10174588
- Stainless Steel Kit Components:
- 8' (2.4 m) MSA Tripod
- 50' (15 m) MSA Rescuer
- (1) Pulleys
- (1) Carabiners
- Standards:
- CSA Z259.2.2
- OSHA
MSA Tripod Technical Specifications:
- Maximum Height of Tripod:
- To Top of Tripod Head: 96" (2.4 m)
- Under Tripod Head: 91" (2.3 m)
- Weight: 145 lb (20 kg)
- Foot (Shoe): Clear chromated zinc-plated steel with skid-resistant rubber tread
- Approvals:
- ANSI Z359.14
- CSA Z259.2.2
- EN 795
- OSHA regulations
- Material:
- Head: Aluminum alloy
- Leg: High-tensil aluminum alloy
- Maximum Personnel Capacity: 400 lb (182 kg)
- Maximum Material Capacity: 620 lb (280 kg)
- Minimum Vertical Static Strength: 5,000 (22 kN)
Replacement Parts & Accessories:
| Part# | Description |
| 10105612 | Leg base support strap |
| 10089207 | Carabiner |
| 506222 | Pulley |
| 10169369 | Tripod duffel bag |
* All Pictures Shown Are For Illustration Purpose Only. Actual Product May Vary Due To Product Enhancement.
